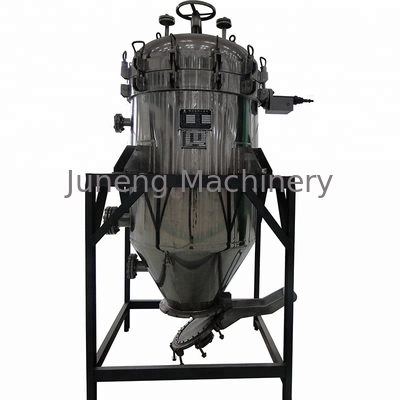

NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry
| Menşe yeri | Jiangsu, Çin |
|---|---|
| Marka adı | Juneng |
| Min sipariş miktarı | 1 set |
| Fiyat | $7,760-8,000 / set |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Ağırlık | 1000 kg | Filtrasyon alanı | 2-70 ㎡ |
|---|---|---|---|
| Filtre Kek Hacmi | 30-1400 L | İş baskısı | 0,1-0,4 MPA |
| Maksimum basınç | 0.5 MPa | İş sıcaklığı | ≤ 150 °C |
| Makine Hacmi | 120-7200 L | Tedavi kapasitesi yağı | 0.4-0.6 |
| Tedavi kapasitesi reçinesi | 1-1.5 | Tedavi Kapasitesi İçecek | 0.1-0.4 |
| Paket Boyutu | 123*456*789 cm | Paket ağırlığı | 1,2 ton |
| Malzeme | Paslanmaz çelik | Çalışma türü | Tamamen kapalı |
| Kalıntı Aktarımları | Pnömatik valf | ||
| Vurgulamak | vertical pressure leaf filter for oil,1000kg vertical leaf filter,oil industry pressure leaf filter |
||
Ürün Açıklaması
Matte Sandblasting Vertical Pressure Leaf Filter for Oil Industry
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Weight (kg) | 1000 |
| Warranty | 1 Year |
Product Description
Product Application
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

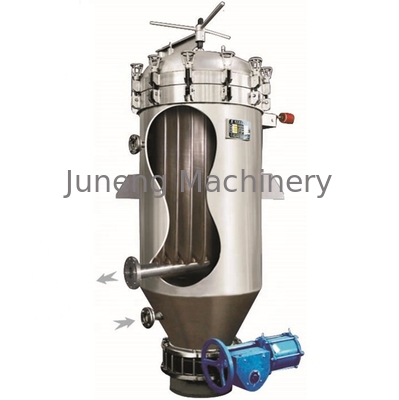

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
Technical Specifications
| Model | Filtration area ㎡ | Filter cake volume L | Treatment Capacity | Work Pressure Mpa | Work temperature ℃ | Machine volume L | |||
|---|---|---|---|---|---|---|---|---|---|
| Oil | Resin | Beverage | Rated pressure | Max pressure | |||||
| NYB-2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 0.1-0.4 | 0.1-0.4 | 0.5 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 2-3 | 2-5 | 0.1-0.4 | 0.5 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 3-6 | 4-7 | 0.1-0.4 | 0.5 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 5-8 | 6-9 | 0.1-0.4 | 0.5 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 6-9 | 8-11 | 0.1-0.4 | 0.5 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 7-12 | 10-13 | 0.1-0.4 | 0.5 | ≤150 | 1300 |
| NYB-20 | 20 | 400 | 4-6 | 9-15 | 12-17 | 0.1-0.4 | 0.5 | ≤150 | 1680 |
| NYB-25 | 25 | 500 | 5-7 | 12-19 | 16-21 | 0.1-0.4 | 0.5 | ≤150 | 1900 |
| NYB-30 | 30 | 600 | 6-8 | 14-23 | 19-25 | 0.1-0.4 | 0.5 | ≤150 | 2300 |
| NYB-36 | 36 | 720 | 7-9 | 16-27 | 23-31 | 0.1-0.4 | 0.5 | ≤150 | 2650 |
| NYB-40 | 40 | 800 | 8-11 | 21-34 | 30-38 | 0.1-0.4 | 0.5 | ≤150 | 2900 |
| NYB-45 | 45 | 900 | 9-13 | 24-34 | 36-44 | 0.1-0.4 | 0.5 | ≤150 | 3200 |
| NYB-52 | 52 | 1040 | 10-15 | 27-45 | 42-51 | 0.1-0.4 | 0.5 | ≤150 | 3800 |
| NYB-60 | 60 | 1200 | 11-17 | 30-52 | 48-60 | 0.1-0.4 | 0.5 | ≤150 | 4500 |
| NYB-70 | 70 | 1400 | 12-19 | 36-60 | 56-68 | 0.1-0.4 | 0.5 | ≤150 | 5800 |
| NYB-80 | 80 | 1600 | 13-21 | 40-68 | 64-78 | 0.1-0.4 | 0.5 | ≤150 | 7200 |
Main Features
- With no cloth and filter paper, it greatly reduces filtration costs
- The fully closed operation is environmentally friendly without material loss
- Vibration residue falling greatly reduces labor intensity and realizes continuous operation
- Residue discharging through the pneumatic valve greatly reduces labor intensity of workers
- The residues in the liquids are subject to activated carbon (carclazyte) filtering or bleaching filtering. It can completely replace the plate and frame filter and is a revolutionary device in the filter industry

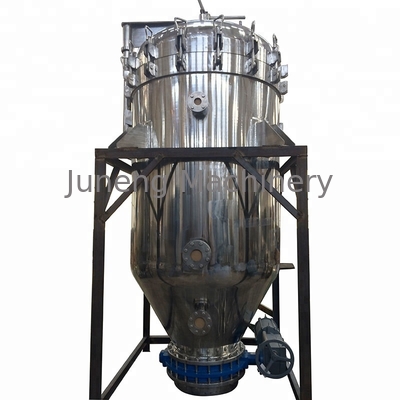

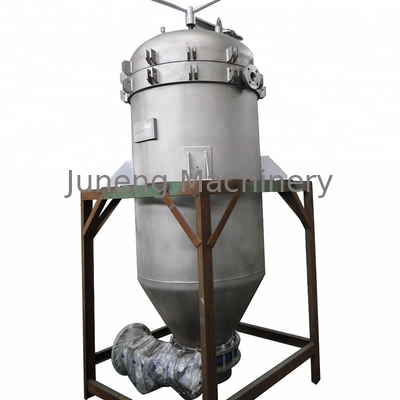

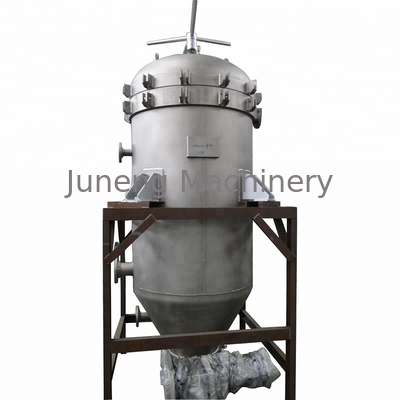

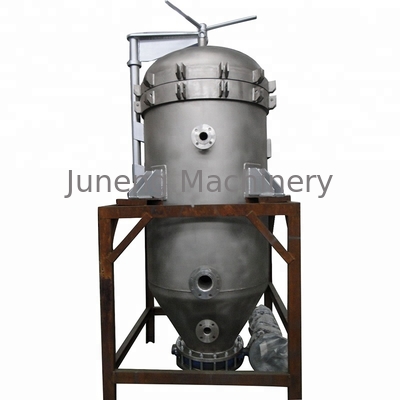

Detailed Images
Related Products
91.8% Response Rate
Milk Separator
91.8% Response Rate
Decanter Centrifuge
91.8% Response Rate
Multi-function Filter
Certifications
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- View our Factory
After-Sales Service
- Training how to install the machine, training how to use the machine
- Engineers available to service machinery overseas
Packing & Delivery
| Packaging Details |
|---|
|
Size: 123 (L) * 456 (W) * 789 (D) Weight: 1.2 T The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Exhibitions We Attended
We have attended various exhibitions during these years, such as Canton Fair.
