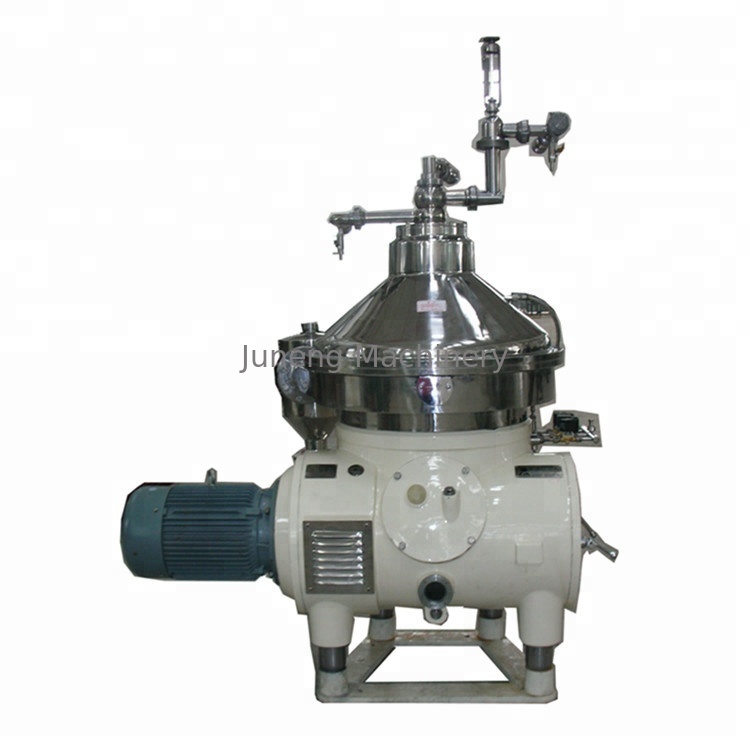

Industrial Milk Cream Separator 5000-10000L/H 15KW 380V
| Menşe yeri | Jiangsu, Çin |
|---|---|
| Marka adı | Juneng |
| Sertifika | CE Certificate |
| Min sipariş miktarı | 1 |
| Fiyat | $32,000-32,899 |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Gerilim | 380V/50Hz | Güç | 15 KW |
|---|---|---|---|
| Ağırlık | 1600 kg | Boyutlar | 1800*1200*1750 mm |
| Malzeme | Sus304/Sus316 | Kapasite | 5000-10000L/H |
| Çekirdek bileşenler | Plc, yatak, motor | Giriş baskısı | 0,05 MPa |
| Çıkış baskısı | 0,1-0,4 MPA | Motor gücü | 15 KW |
| Dönen Hız | Yüksek | Gürültü seviyesi | Daha düşük |
| Çalışma istikrarı | Stabil | Sızdırmazlık sistemi | Tamamen mühürlü |
| Ayırma Verimliliği | Mükemmel | ||
| Vurgulamak | Industrial milk cream separator 15KW,High-capacity milk separator 10000L/H,380V milk cream separator machine |
||
Ürün Açıklaması
Milk Factory Use Skimming Separator Fresh Cream Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air entry and maintaining product quality.
Milk products vary widely in composition, with even basic market milk containing different fat contents. The separator processes diverse dairy products including butter, cheese, quark, and yogurt.
Main Features
- High rotating speed
- Operating stability
- Completely sealed inlet and outlet system
- Lower noise operation
- Perfect separation efficiency
Technical Specifications
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
|---|---|---|---|---|---|---|
| DHN360 | 2000-5000 | 0.05 | 0.1-0.35 | 7.5 | 1200 | 1530*1150*1500 |
| DHN470 | 5000-10000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*1750 |
| DHN550 | 10000-20000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
| DHN616 | 25000-35000 | 0.1 | 0.3 | 37 | 3000 | 2185*1728*2082 |
Machine Components
Name: Drum
Brand: Juneng
Origin: China
The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator. It receives power through precise taper fitting with the vertical shaft. Each numbered drum component must remain in its original configuration to maintain balance and safety.
Name: Shaft
Brand: Juneng
Origin: China
The vertical shaft transmits power through a speed step-up gear and high-speed rotating components. Its elastic bearing support allows precise height adjustment for optimal operation positioning between drum, centripetal pump, and water-inlet housing.
Service Support
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing opportunities
After-Sales Service
- Machine installation and operation training
- Overseas engineer support for machinery service
Packaging & Delivery
| Packaging | Details |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Standard packaging uses wooden boxes (Size: L*W*H). European shipments include fumigated wooden boxes. For tight container fits, we offer PE film packaging or custom solutions per customer request.
