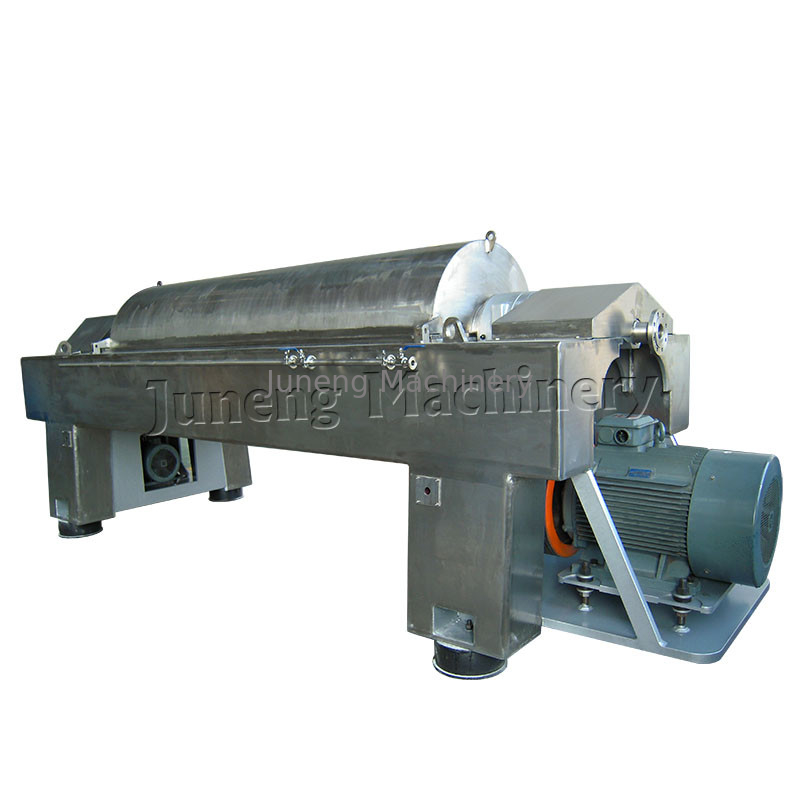

Uzun Hizmet Ömrü Paslanmaz Çelik Yatay Dekantör Santrifüj Yağ Yapma Makinesi

Ürün ayrıntıları:
Menşe yeri: Yixing Jiangsu
Marka adı: Juneng
Sertifika: CE , ISO9001&ISO14001
Model numarası: LW
Ödeme & teslimat koşulları:
Min sipariş miktarı: Pazarlık
Fiyat: Negotiable
Ambalaj bilgileri: Denize dayanıklı ambalaj
Teslim süresi: 30 ~ 50 gün
Ödeme koşulları: L/C, T/T
Yetenek temini: 50 setleri / ay
Şimdi başvurun

Detay Bilgi

diğer adı: Malzeme: SS304
İşlevi: Sıvı-katı ayırma yapı: Yatay
Faaliyet: Sürekli Denetim: PLC

Ürün Açıklaması


Long Service Life Horizontal Decanter Centrifuge Oil Making Machine


Product description:






Working principle:



Centrifuge is consist of two rotors, one is drum the other is screw conveyor ( For short spiral). Drum running with High-speed, the drum and slurry will rotate together and by the centrifugal force effect, this centrifugal force is larger than the weight many times, so that solid particles will be separated from the liquid, from the drum axis, then setting on the drum wall, the screw conveyor which located in the drum and rotating at the speed which lower than the speed of drum then push the solid particles to the residue discharge port.



Difference speed between outside drum and screw conveyor depends on the speed of the transmission ratio of differential and its rotation speed.Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.


Uzun Hizmet Ömrü Paslanmaz Çelik Yatay Dekantör Santrifüj Yağ Yapma Makinesi



Model Drum diameter
mm
Draw Ratio
L/D
Speed of drum
r/min
Factor of
separation G
Spiral difference
rotate speed

r/min
Inlet
capacity(m3/h)
Main/assist
motor (KW)
LW250 250 3.73 4200 2467 2~31 1-7 11/4
LW350 350 4.4 3600 2540 5~25 5~18 22/5.5
LW450 450 4.4 3200 2580 5~25 5~28 30/11
LW520 520 4.1 2850 2365 2~26 10~35 45/11
LW550 550 4.1 2650 2370 2~26 10~45 55/11



Application:


Decanter centrifuge is most often used for clarification of liquid containing high concentrations of solid, removing solids from liquid. It is usually used in waste water and PVC sludge industry. And also can be used in sunflower oil, palm oil and tea industry.


Uzun Hizmet Ömrü Paslanmaz Çelik Yatay Dekantör Santrifüj Yağ Yapma Makinesi

Detailed Product Description

Diameter 250mm-720mm  Voltage :  220V, 380V,440V,460V
Speed Inverter Control  Electrical Components:  World Famous Brand
Operation Continuous Separation :  Three phase
Bearing SKF Moc :  SS304, SS316L, SS2205
Control PLC Motor :  2





Advantages :



  1. Lower cake transportation costs due to very dry solids

    2. Better recovery of nutrients due to very high separation efficiency

    3. Lower fresh water consumption compared to other processes

    4. Continuous and fully automatic operation

    5. 24 h operating reliability

    6. Optimum wear protection

    7. Energy saving design

    8.  Easy to operate

    9. Easy to maintain

    10. Simple assembly/dismantling



Following allocation could be available to meet customer’s demand:

  1. Frequency conversion plus PLC controlling system
  2. Protection system for vibration and temperature rising
  3. Feeding speed control
  4. Gas-liquid separation device on liquid outlet
  5. Other allocation demand







Features

  • All parts coming into contact with the product are made of stainless steel.
  • 3-phase AC motor for controlled torque starting via frequency converter
  • Approximately 80 to 90 % of the oil is recovered.
  • Low personnel costs due to continuous and automatic operation.
  • Highest g-force for higher solids output
  • Adjustable bowl speed via VFD
  • Automatic adjustment of differential speed via VFD
  • Two motor drive
  • Belts for both primary motor and secondary motor



Dynamic balance

Uzun Hizmet Ömrü Paslanmaz Çelik Yatay Dekantör Santrifüj Yağ Yapma Makinesi
